Design Essentials | Toilet Cubicles | Hadrian UK

Elite, Elite Plus & Elite Max - Powder Coated & Stainless Steel Toilet Compartments

Craftsmanship at Every Corner

Hadrian’s trademark corners are unmatched for their clean, attractive appearance. The superior strength of Hadrian’s full corner weld creates a hygienic seal and prevents parts from loosening and detaching.

Hadrian UK Stainless Steel Corner Weld

Elite, Elite Plus & Elite Max Powder Coated | Elite, Elite Plus & Elite Max Stainless Steel

Full Vertical Core

Doors, panels and pilasters are structurally reinforced with 13mm cell vertical honeycomb bonded from top to bottom and edge to edge throughout their entire core. The honeycomb reinforcement enhances strength, sound absorption and overall impact resistance.

Hadrian UK - Full Vertical Core

Elite, Elite Plus & Elite Max Powder Coated | Elite, Elite Plus & Elite Max Stainless Steel

Locking Edge Bar

All components are tack welded and interlocked under tension with a roll-formed oval crown locking bar for continuous bonding and a permanent, hygienic seal.

Hadrian UK Locking Edge Bar

Elite, Elite Plus & Elite Max Powder Coated | Elite, Elite Plus & Elite Max Stainless Steel

Barrier Free Turns (standard on all Elite & Elite Plus doors)

Hadrian’s exclusive Barrier Free Turn can be activated with a short, easy movement and without a finger-grip application.

Hadrian UK Barrier Free Turns

Elite & Elite Plus Powder Coated | Elite & Elite Plus Stainless Steel

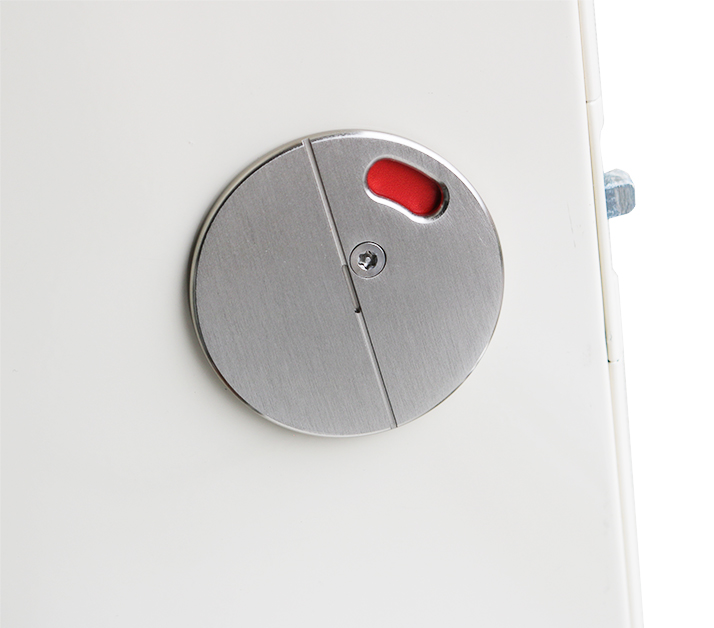

Red/Green Indicator (standard on all Elite & Elite Plus doors)

Easy to install Red/Green Indicator in satin finish stainless steel - supplied with all Elite & Elite Plus systems. Emergency override is achieved using a large flathead screwdriver.

Hadrian UK Red/Green Indicator

Elite & Elite Plus Powder Coated | Elite & Elite Plus Stainless Steel

Continuous Channels

Full-height continuous channels are available for all panel-to-pilaster, panel-to-wall, and pilaster-to-wall connections. The full-height channels match the finish of the cubicles while eliminating sightline gaps.

Hadrian UK Continuous Channels

Elite, Elite Plus & Elite Max Powder Coated | Elite, Elite Plus & Elite Max Stainless Steel

Stainless Steel Brackets

As an alternative to wall channels, Hadrian’s #4 brushed stainless steel brackets extend the look and performance of stainless steel to the details of the installation. Stainless steel hardware is the default for all Elite & Elite Plus systems.

Hadrian UK Stainless Steel Brackets

Elite, Elite Plus & Elite Max Powder Coated | Elite, Elite Plus & Elite Max Stainless Steel

Stainless Steel Wrap-Around Hinges Incorporating Hinge Pin w. Nylon Sleeve

Hadrian's #4 brushed stainless steel wrap-around hinges offer durability and flawless performance. The metal core of Hadrian’s upper hinge pin provides sturdy support, while the self-lubricating nylon sleeve ensures smooth, quiet operation. The threaded pin can be removed easily and reinserted if necessary.

Hadrian UK Wrap Around Hinges

Elite, Elite Plus & Elite Max Powder Coated | Elite, Elite Plus & Elite Max Stainless Steel

Anti-Grip Headrail

Available in a standard anodised or brushed finish to complement the look of stainless steel, Hadrian’s double-ridge, anti-grip headrail design deters boisterous activity and consequential damage while offering a smooth track for shower curtain hooks.

Hadrian UK Anti Grip Headrail
